F-1T & F-2T Finlandia Controls
Wall mounted manual type control
Flush mount
F-1T: 3 3/4”w x 3 1/2”d x 9 1/4”h
For use with most 6kW or lower 240v heater models.
F-2T: 3 3/4″w x 2 1/2″d x 9 1/4″h
For use with most 8kW and larger heaters. Separate FX contactor power unit required when using F-2T.
F-1T & F-2T controls include thermostat, 60 min. mechanical “ticking” timer, light switch (non-dimmable), & indicator light. Thermostat capillary tubing is 6 ft. long (non-extendable) and is attached to a 6” sensor bulb. Made in USA.
F-2 Finlandia Control
Wall mounted manual type control without timer
3 3/4″w x 2 1/2″d x 9 1/4″h.
Flush mount
For use with a separate 24 hour time clock in commercial settings when the Sauna is to be on for an extended period of time. F-2 requires FX contactor power unit. NOTE: F-2 control can only be used when an attendant is on duty during hours of operation. Made in USA.
Cover 3 (optional thermostat dial cover)
Tamper resistant clear acrylic cover is ideal for fitness clubs. Screw on cover encases the thermostat dial so that the Sauna room temperature cannot be adjusted by others.
Cover fits all F-series controls.
FX Contractor Power Unit
FX Contactor Power Unit
Power unit relay required for heaters 8kW and over when F-2T or F-2 wall control is used. All FX Contactor Boxes are 6″w x 8″h x 4″d. Made in USA.
FX402 (for 8kw, 240v/1ph heater)
FX303 (for 3ph heaters up to 8kw)
FX404 (for 240v/1ph heaters over 8kW)
FX503 (for 208v/3ph heaters over 8kW)
24HTC – Time Clock
For extended time in commercial settings
Size: 5″w x 3″d x 7 3/4″h
Surface mount
Use separate time clock in conjunction with the F-2 wall control and proper FX contactor power unit in commercial settings where the Sauna will be on a scheduled program.
Time clock is in lockable metal box. NOTE: An attendant must be on duty during hours of operation.
24HTC-T101 Mechanical 24 hour time clock for Club & Virta heaters
24HTC-T104 Mechanical 24 hour time clock for FIN heaters
24H7D-1705 Digital 7 day time clock for Club & Virta heaters
24H7D-1725 Digital 7 day time clock for FIN heaters
Xenio Digital Control
Surface or flush mount
Control pad size: 3 3/8″w x 1″d x 4 3/8″h

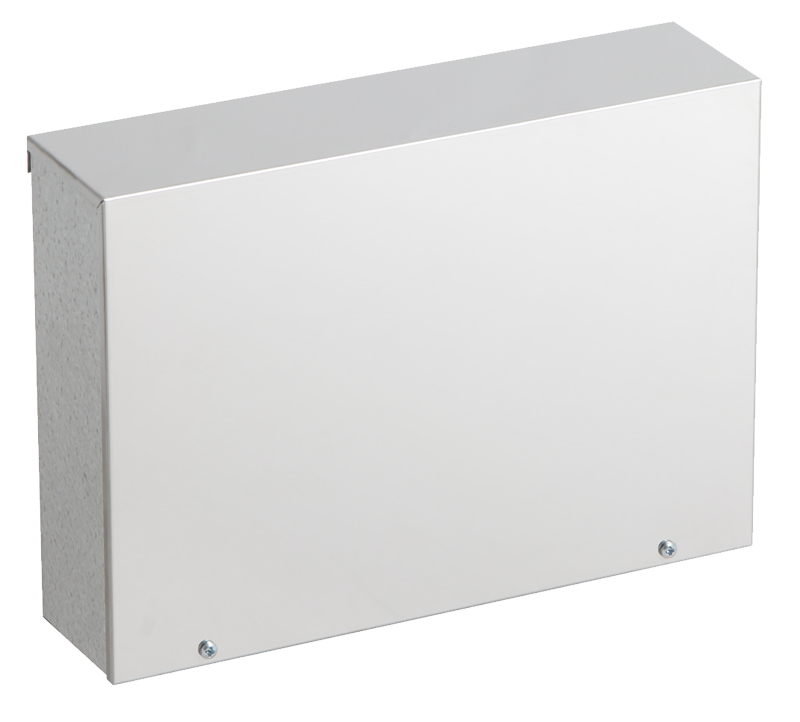

Power unit size CX170-U1-15 & CX170-U3-15: 10 1/2″w x 3″d x 10 1/2″h
Power unit size CX30, CX45, CX30C: 14 1/4″w x 3″d x 10 1/2″h
Touch screen design. Adjusts time duration, temperature, and controls room light. Xenio has 60 min. timer plus 10 min. to 12 hour delay timer (10 min. increments). Has °F or °C display settings. Xenio contains control pad, power unit, temperature sensor with 13 feet of cable, & 16 foot long data cable. CX30C has additional 16 foot long humidity sensor cable. All cables connect to the power unit. Longer cables (82 ft. max.) may be ordered. Do not splice cables.
CX170-U1-15 Use with 240v/1ph FIN heaters
CX170-U3-15 Use with 208v/3ph FIN heaters
CX30-U1-U3 Dual 240v/1ph & 208v/3ph power. Use with Club K10G, Cilindro HPC6, 9, 11, Virta HL6, 9, 11, and Spirit HSP6 heaters.
CX30C-U1 For all Virta Combi HLS heaters
CX45-U1-U3 Dual 240v/1ph & 208v/3ph power. Use with Club K12.5G, K15G, Cilindro HPC8, Virta HL8, 16, 20 and Spirit HSP8 heaters.
View Xenio Components
View CX170 Xenio Control Manual (PDF)
View CX170-U3 Xenio Control Manual (PDF)
View CX30C Xenio Control Manual (PDF)
View CX30/CX45 Xenio Control Manual (PDF)
Xenio WI-FI Control
For automated remote start
Control pad size: 3 3/8″w x 1″d x 4 3/8″h
Xenio WI-FI upgrade allows the heater to be turned on via your smart phone device.
Download the MyHarvia app to operate Sauna temperature, time, and room light. Apple and Android compatible. WI-FI control must be in good signal range of your home router. Control is compatible with any CX Xenio power unit that has a serial number higher than 2034000001. Xenio WI-FI does not connect with other smart home automated systems.
View WI-FI compatibility & FAQs (PDF)
View WI-FI Manual (PDF)
